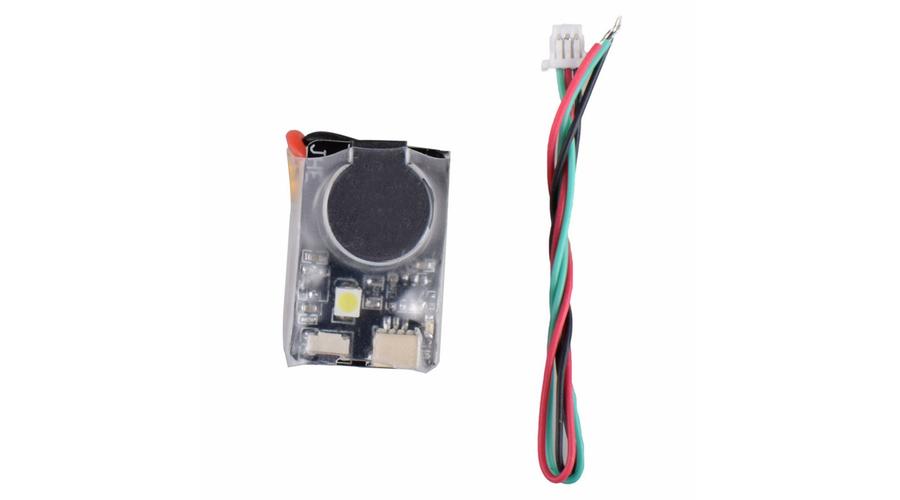

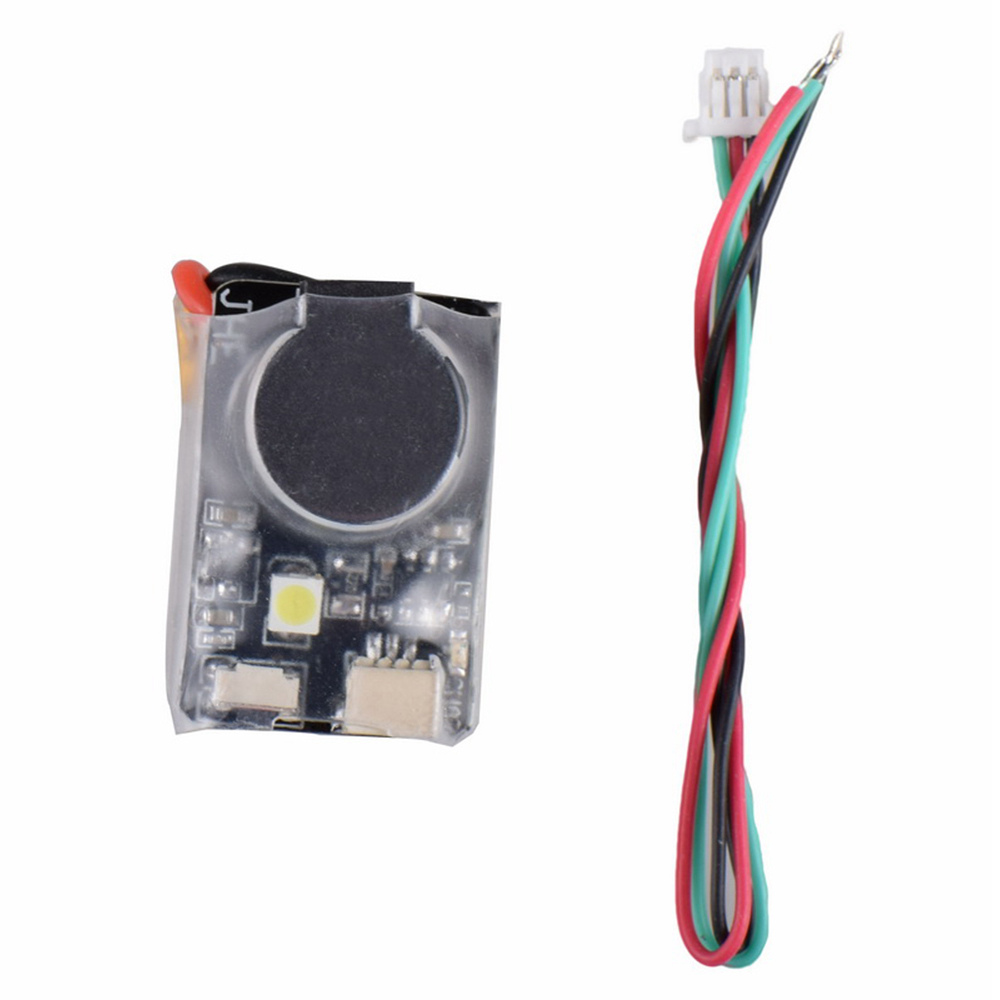

JHE42B Integrated battery buzzer with LED
| Manufacturer: |
|
| Model: | JHE42B |
|
|
|
|
The JHE42B S Finder is a 5v buzzer with integrated battery, now smaller than the first version. This allows you to locate your drone even if the main battery has disconnected. The S version is now smaller but still sold at the same price as before! |
|
Description
How to turn off the buzzer
Press and hold the release button for more than 2 seconds, the JHE42B_S Finder turns off the sound.
The JHE42B_S Finder is compatible with all BF and CF flight controls.
Just connect to the buzzer interface of the flight controller and it will work.
When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will automatically charge the JHE42B_S Finder (the red LED will light to indicate that charging is in progress,
Red LED off means charging is saturated; red light flashing means flight controller is powered off, wait 30 seconds waiting time).
Parameters
| volume | 110 dB |
| Dimensions (Length * Width * Height) | 25x17x17 mm |
| Mounting pattern | free |
| Weight | 7.4 g |
| Built-in battery | 75mah |
| Working time | 1 hour |
Package contents
1x buzzer
1x 3 pin cable
