Description
Frequency range: 5.5-6.0 GHz
Bandwidth: 500MHZ
Gain: 5dBi
Voltage Standing Wave Ratio <= 1.5
Axial Ratio: 0.74

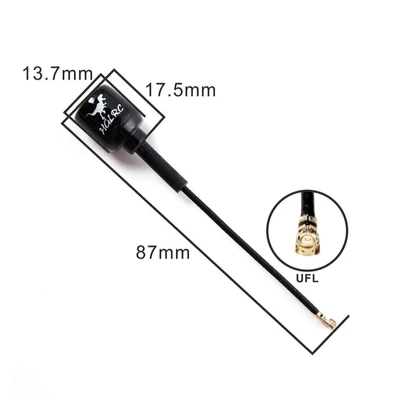

Dimension: 21*28mm in diameter
Consumption current: <10MA
Polarization intensity: R.H.C.P.
Power supply voltage: DC3.0-5.0v
Noise figure: <1.5db
Axial ratio : 3dBi
Maximum input power: 5W
Output: <1.8
Working temperature: - 40 ~+85 ~C
Storage temperature: - 40 ~+85 C
Parameters
| Dimensions (Length * Width * Height) | 90 mm |
| Radio frequency | 5.8 GHz |
| Frequency range | 5.5-6.0 GHz |
| Bandwidth | 500MHZ |
| Gain | 5dBi |
| Voltage Standing Wave Ratio | <= 1.5 |
| Axial Ratio | 0.74 |
| Dimension | 21*28mm in diameter |
| Consumption current | <10MA |
| Polarization intensity | R.H.C.P. |
| Power supply voltage | DC3.0-5.0v |
| Noise figure | <1.5db |
| Axial ratio | 3dBi |
| Maximum input power | 5W |
| Output | <1.8 |
| Working temperature | - 40 ~+85 ~C |
| Storage temperature | - 40 ~+85 C |
Package contents
1x HAMMER antenna
