Radiomaster Boxer ELRS Transmitter Transparent V4 Hall Gimbal
Price:
226.49 EUR
| Manufacturer: |
|
| Model: | boxer_elrs_transparent |
|
|
|
Description
Feature
- Special transparent version radio with white Gimbal LED set and RadioMaster Neck Strap included
- You can DIY your personalized and unique radio anytime
- Available with built-in ExpressLRS RF modules
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access
- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications
- Item: BOXER Radio Transparent Version
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ELRS 2.4GHz
- Supported protocols: Module dependent
- Transmitting Power: ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
- Cooling fan: Built in (ELRS version)
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
- BONUS: White Gimbal LED set included but not installed
- BONUS: Radiomaster neck strap
Parameters
| Dimensions (Length * Width * Height) | 235x178x77 mm |
| Bimbal type | HALL sensor |
| Radio frequency | 2.4 GHz |
| Transmitter OS | EdgeTX |
| Weight | 532.5 g |

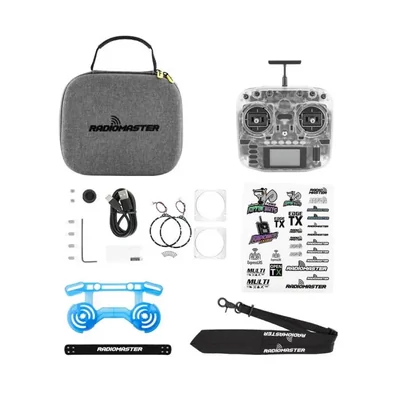

Package included
1 * BOXER Radio Transparent Version
1 * Signature Carry Case
1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * Stickers
1 * Manual
1 * White Gimbal LED set (ready to install)
1 * 18650 Battery tray (Batteries not included)
1 * RadioMaster Neck Strap for Transmitter
