Parameters
| Chip | M8030 |
| Power Supply | 5V |
| Antenna | Ceramic Antenna |
| Receiving Format | GPS,GLONASS,GALILEO,QZSS,SBAS,BDS |
| Receiving Channel | 72 Searching Channel |
| Support Rate | 57600 dps |
| Output Protocol | NMEA |
| Output Frequency | 1Hz-10Hz,Default 10Hz |
| Speed Precison | 0.05 m/s |
| Level Positioning Precison | 2D Acc1.5m(ln Open Sky) |
| Receiving Sensitivity | Trace -167dBm |
| Capture-160dBm | |
| Dynamic Characteristics | Max Height:50000m |
| Max Speed | 500m/s |
| Max Acceleration | 4G |
| Working Temperature | -40℃-+85℃ |
| Storage Temperature | -40℃-+105℃ |

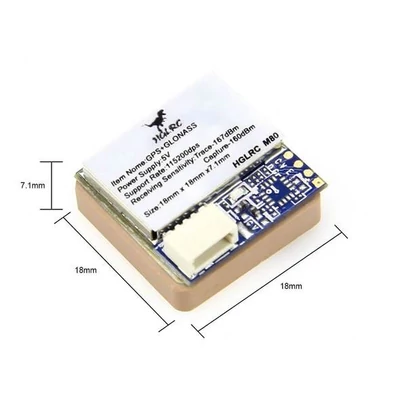

| Size | 18.5mm x 18.5mm x 7.1mm |
| Weight | 9.4g |
