Description

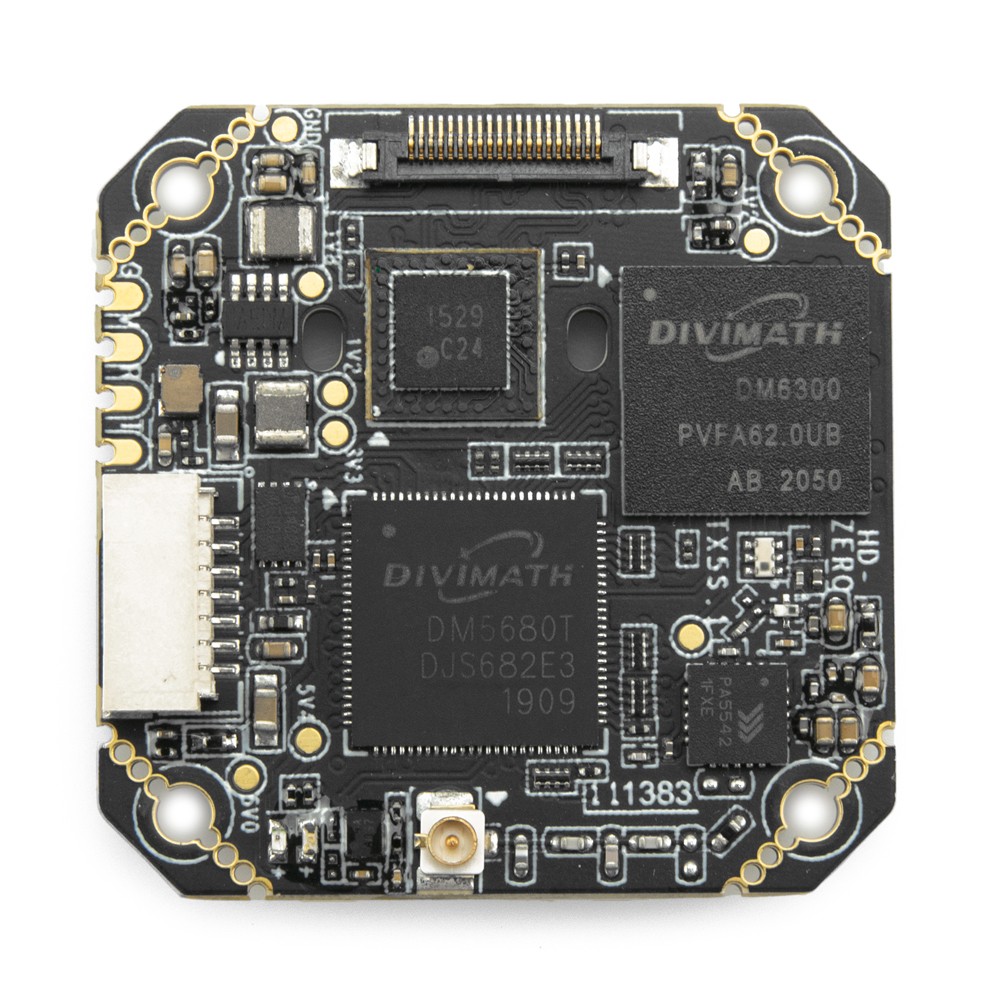

The HDZero Whoop VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
Features
Designed for whoops and toothpick drones
25/200mW selectable transmitter power
Digital HD Wireless VTX
MIPI interface
5.8GHz
Parameters
| Antenna connector | IPEX (u.FL) |
| Mounting pattern | 25.5x25.5 mm (whoop) |
| Radio frequency | 5.8 GHz |
| Video Connector | 20 Position 0.30mm Pitch |
| Resolution Default | 1280*720@60fps |
| Interface | 4 lane MIPI CSI YUV422 |
| Power | 410mA@12V (12V@.5A) |
| Size | 32.5mm x 32.5mm x 7mm |
| Power input | 7V-26V(2S-6S) |
| RF power | 25mw/200mw |
| Weight | 5.4g |
Package included
1 x HDZero Whoop HD FPV VTX
4 x Power/UART Cables
