Description
A new high-performance AIO brushless FC, GEP-20A-F4 is added to the NEW members of the toothpick FPV Micro Quad’s
Compared with the previous 12A version of GEP-20A-F4, the new GEP-20A-F4 can achieve 20A continuous current and burst current can reach 30A. Supports up to 4S batteries. It is recommended to use 12XX-15xx motors with 3 “- 4” propeller. This GEP-20A-F4 has powerful flight performance, comes with OSD tuning, extremely light weight, allowing you to build a toothpick FPV Micro Quad’s with perfection performance.
Coupled with a 200mW map transmission specifically designed for Whoop classes and toothpick racks, it has stable signals, clean graphics, and light weight.Easy to use.

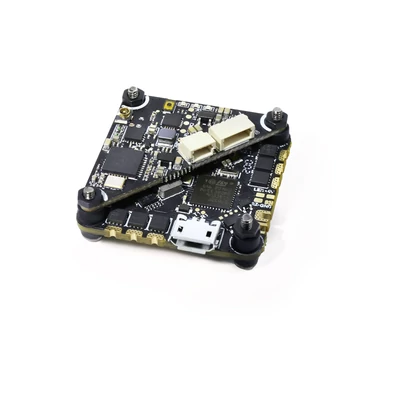

GEP-20A-F4 Flight contorller:
Specifications:
- Model Name:GEP-12A-F4
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- FC Firmware target: GEPRCF411
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- Current Monitoring : Support
- Betaflight OSD : Support
- External Buzzer : Support
- LED : Support
- USB Port: MicroUSB
- BEC Output: 5V@1A
- Integrated LC Filter
- ESC MCU: BB21F16G
- Continuous current: 20A
- Peak current: 30A
- Input:2-4s lipo
- Supports Dshot600 ,Oneshot,Multishot
- Current meter: 210
- Target: G_H_30
- Size: 32x32mm board,26.5mm mounting holes (M2)
- Installing Hole: 26.5×26.5mm, M2
VTX Specifications:
- Model Name:GEP-VTX200-Whoop
- Item name: 25~200mw 48CH VTX FPV Transmitter
- Output power: Pit/25/100/200mw switchable
- Channels: 48CH
- Input voltage: 4.5V – 5.3V
- Current consumption: 300mA(type)
- Antenna: RG178 antenna U.FL interface
- Frequency: 5.8GHz 5 bands 48 channels With Raceband
- Video Format:PAL/NTSC
- Control protocol:IRC Tramp
- Weight: 2g without antenna
Receiver Support:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receive
- TBS Crossfire Receiver
- AC900
- Most receivers that support SBUS
Parameters
Antenna connector | IPEX (u.FL) |
ESC firmware | BLHeli S |
barometer | no |
BEC | 5V/1A |
DJI HD support | no |
OSD | yes |
Mounting pattern | 26,5x26,5 mm |
IMU | MPU6000 |
Radio frequency | 5.8 GHz |
voltage | 2-4 cell (7.4V-14.8V) |
Package included
1 x GEP-20A-F4
1 x GEP-VTX200-Whoop
1 x Power cable
8 x screw
4 x Soft silicone
