Description
Parameters
| Installation size | Nano (14mm) |
| Dimensions (Length * Width * Height) | 14x14; 19x19 mm |
| Input voltage | 3.8-16 V |
| Internal microphone | no |
| resolution | 1200 TVL |
| Sensor type | Sony 1/2" CMOS |
| TV system | NTSC / PAL switchable |
| Weight | 3,1 g |
| FOV | 4:3 FOV-H:130° FOV-D:160° |
| 16:9 FOV-H:130° FOV-D:145° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 3.8V~16V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 80mA±15% @ DC12V 170mA±15% @ DC5V |

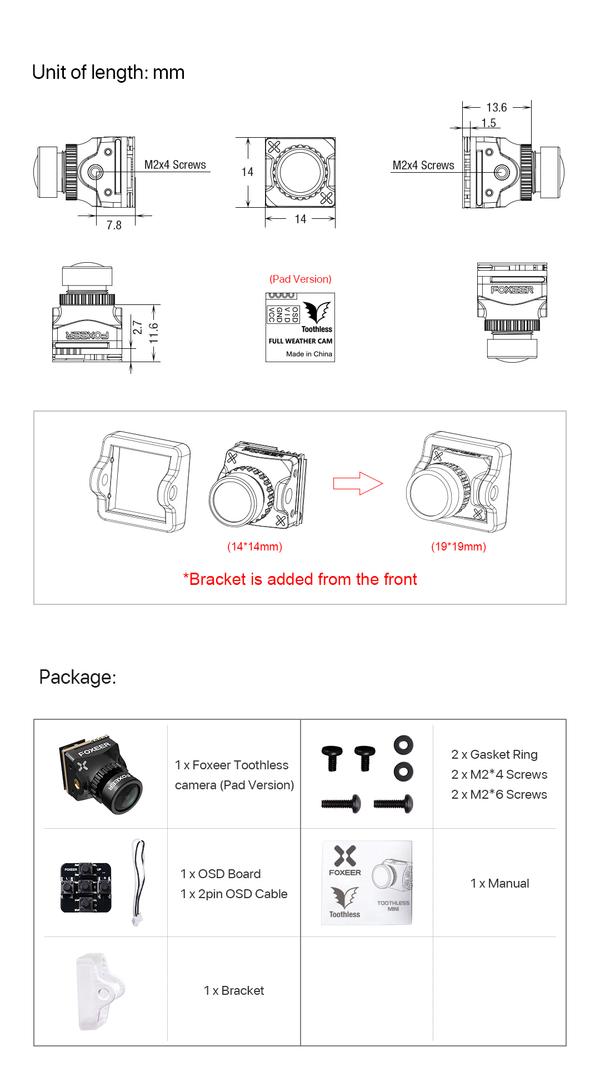

Package contents
1 x Cam
1 x Extension Bracket
1 x 2pin OSD Cable
2 x Servo Silicon Cable
1 x OSD Board
M2 Screws
1 x Extension Bracket
1 x 2pin OSD Cable
2 x Servo Silicon Cable
1 x OSD Board
M2 Screws
