Description
Parameters

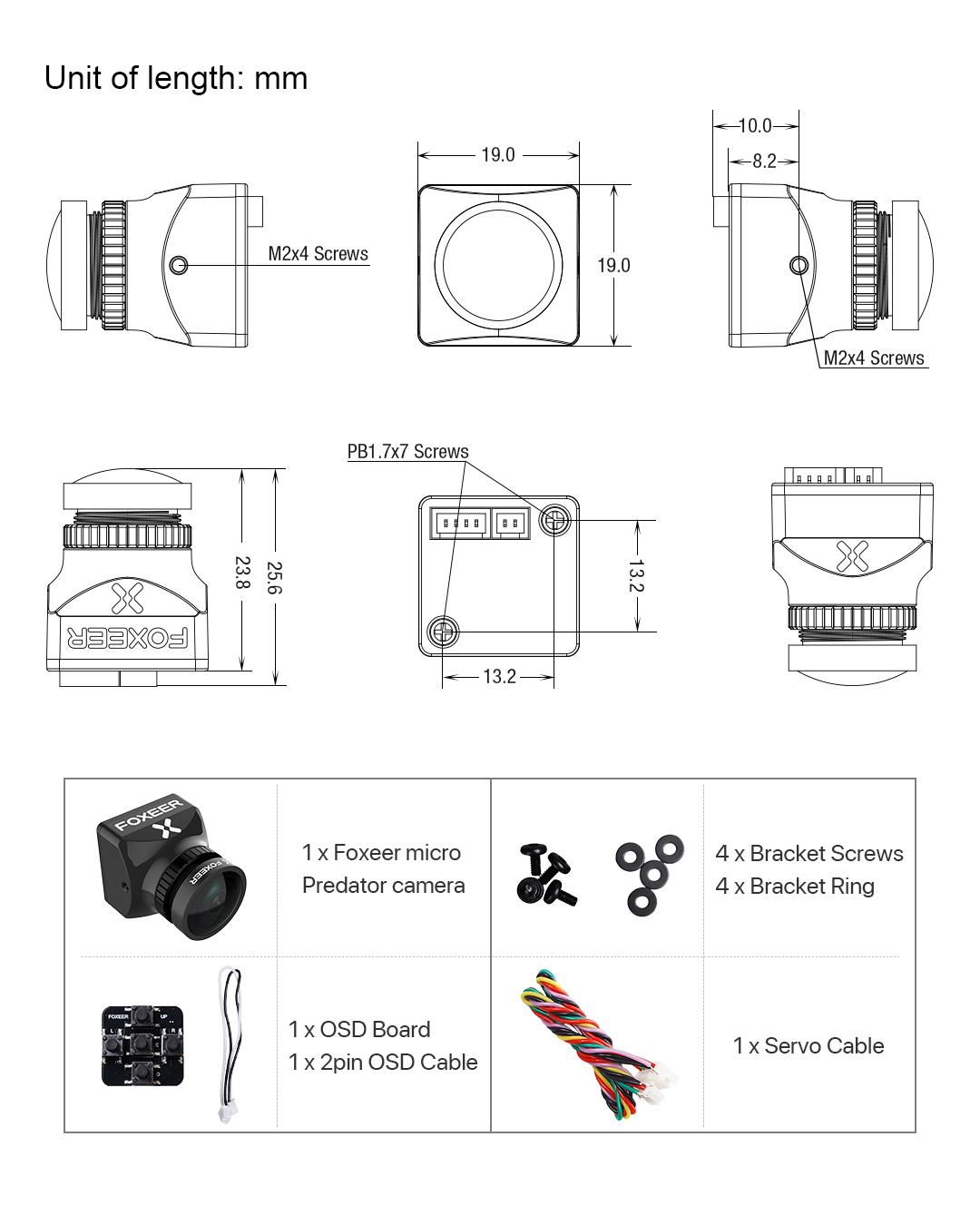

| Installation size | Micro (19mm) |
| Dimensions (Length * Width * Height) | 19x19 mm |
| Input voltage | 4.5 - 20 V |
| Internal microphone | no |
| resolution | 1000 TVL |
| Sensor type | Sony 1/3" CMOS |
| TV system | NTSC / PAL switchable |
| Weight | 8.8 g |
| Sensor Type | Sony 1/3" CMOS Sensor |
| Scale | 4:3(default)/16:9 Switchable |
| Tv System | PAL(default)/NTSC Switchable |
| Resolution | 1000TVL |
| Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec | |
| Video Output CVBS Analog Signal | |
| FOV FOV-H | 130° FOV-D:165° |
| Shutter Speed | Auto |
| Minimum Illumination | 0.01Lux |
| White | Balance Auto |
| DNR | 3DNR 2DNR |
| WDR | Super WDR |
| Mode | DAY/CLOUDY/Night/LED |

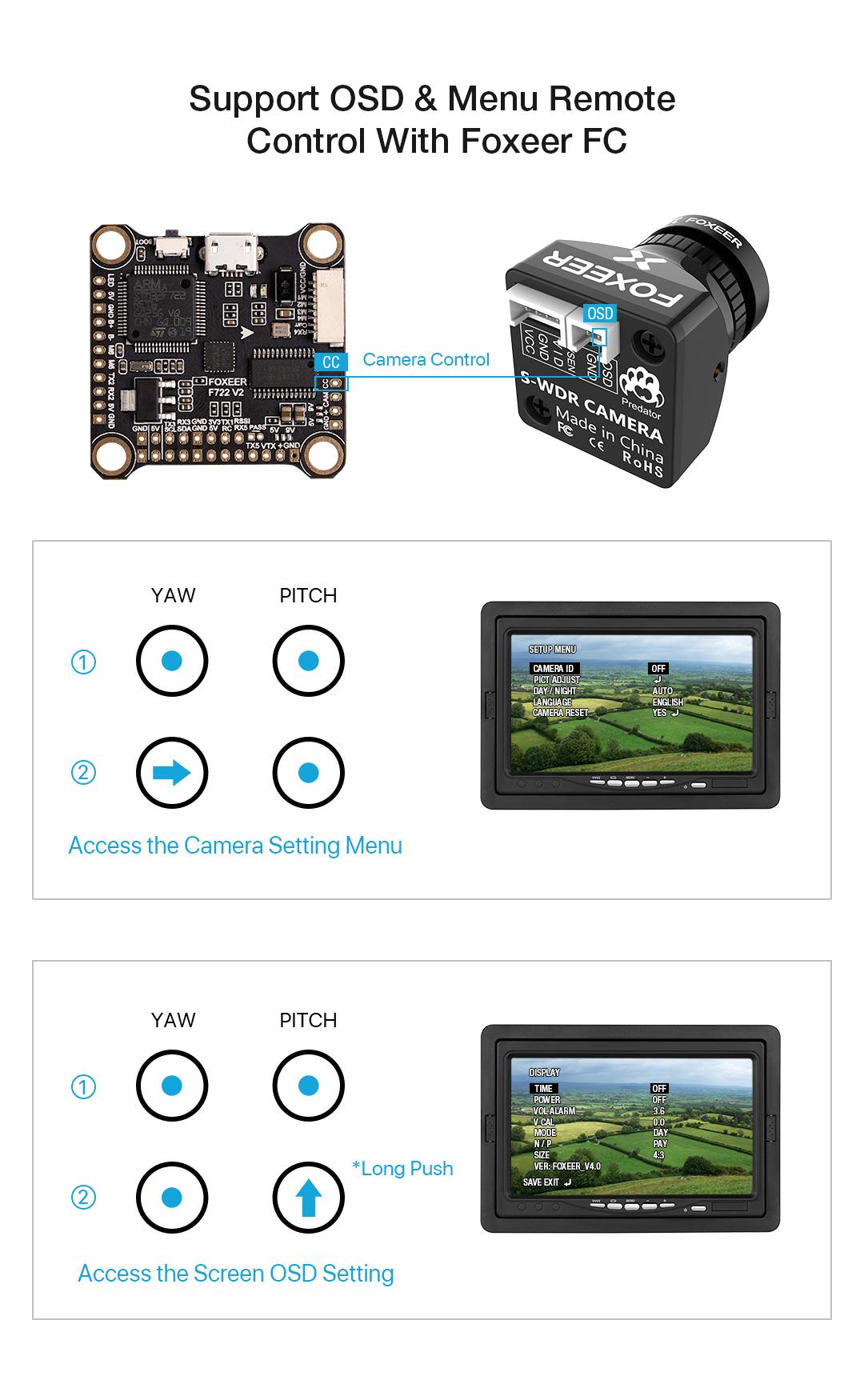

| Fast Mode Switch Long Press Right Button to switch among DAY/CLOUDY/Night/LED | |
| Flight OSD | Voltage/Cam Title/Time/Cross Hair |
| Input Voltage | 4.5V~20V |
| Language | ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 50mA±15% @ DC12V 115mA±15% @ DC5V |
| Weight 8.8g(Exclude cable) |
Package included
1 x Cam
1 x Extension Bracket
1 x 2pin OSD Cable
2 x Servo Silicon Cable
1 x OSD Board
M2 Screws
1 x Extension Bracket
1 x 2pin OSD Cable
2 x Servo Silicon Cable
1 x OSD Board
M2 Screws
