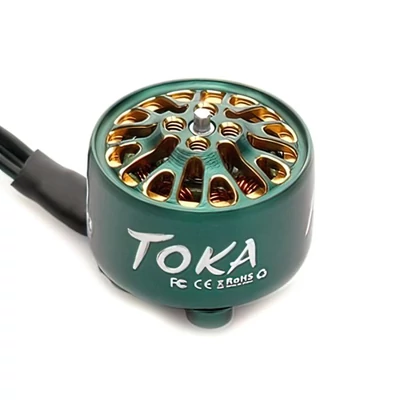

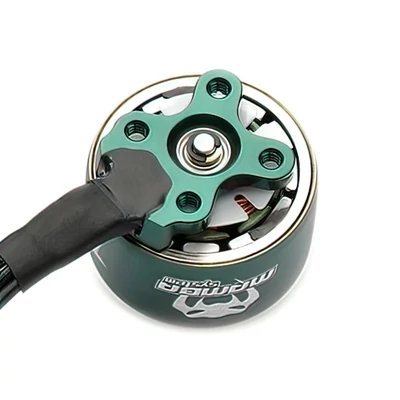

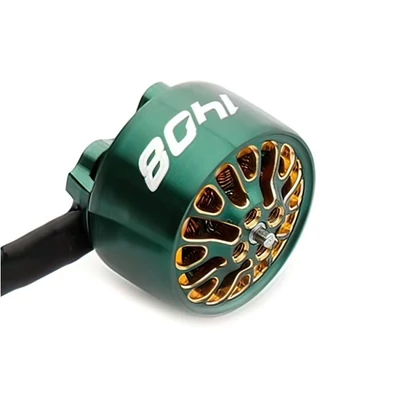

Diatone MAMBA TOKA 1408 2900KV Racing Motor Green
Price:
19.32 EUR
| Manufacturer: |
|
| Model: | DIAT_MAMBA_TOKA_1408_2900KV |
|
|
|
Description
Overall Dimension:Φ20.6×18.5mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing：5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:8mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 15.75A
ldle Current：10V/0.4~1.0A
Maximum Power: 376.3W
Internal Resistance：135mΩ
Parameters
| voltage | 4-6 cell (14.8V-22.2V) |
| Overall Dimension | Φ20.6×18.5mm |
| prop mounting shaft diameter | 1.5mm |
| Installation hole position | 12×12mm，M2 |
| Prop | 3inch~4inch |
| Bearing：5*2*2.5 | |
| Shaft Diameter | 2.0mm |
| Lead Wire Size：24AWG×150mm | |
| slots/poles | 9N12P |
| Magnet Wire | 240℃ Enameled Wire |
| Stator Diamter：14mm | |
| Stator Height | 8mm |
| Rated Voltage | 4~6S (16.8V~25.2V) |
| Peak Current | 15.75A |
| ldle Current：10V/0.4~1.0A | |
| Maximum Power | 376.3W |
| Internal Resistance：135mΩ |
