Description
Because of their size and weight, the Whoop frames are primarily designed and manufactured by the CCarbon workshop for competition purposes.
The frame is produced in-house from 3K carbon sheets with flat-bed CNC milling technology.
One of the great advantages of domestic production is that the necessary parts can be procured within 1-2 days.
The frame was designed and built for a stack with a hole spacing of 25.
You can convert your existing small drone with a plastic frame into this Whoop frame.

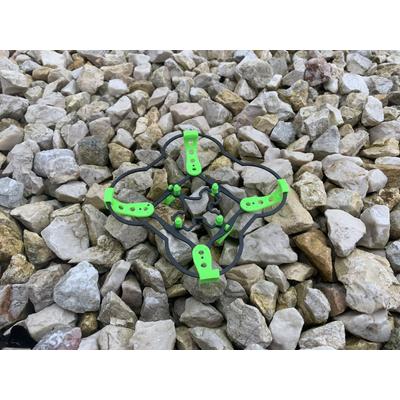

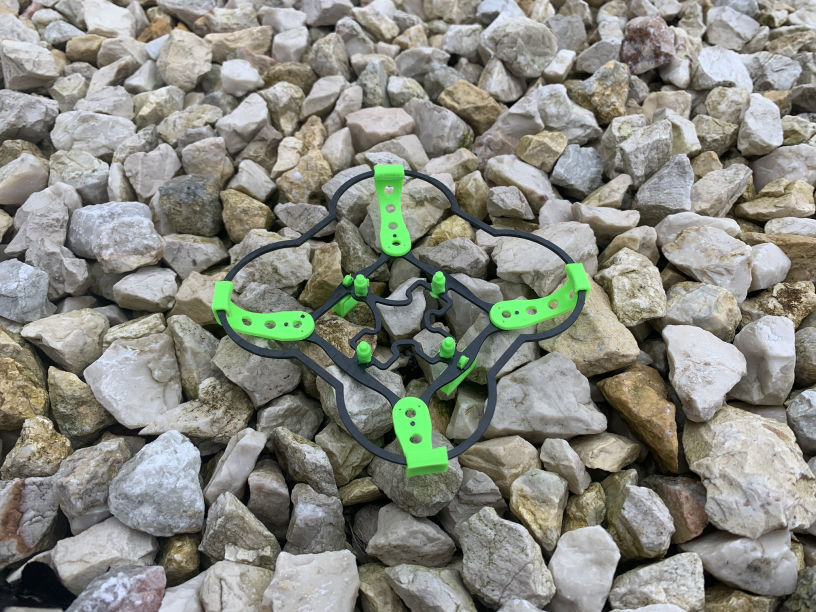

Every Whoop frame comes with the TPU parts shown in the pictures.
Assembled Features:
Design: True-X
Length: 89 mm
Width: 89 mm
Base height: 28 mm (without canopy)
Motor-to-motor distance: 56 mm
For diagonal axis: 65 mm
Acceptable motor diagonal: 6.6 mm
Thickness of carbon parts: 1 mm
Assembled weight of frame with TPU parts: 6g
Recommended propeller size: 31 mm, but 35 mm can also be used
Parameters
| Dimensions (Length * Width * Height) | 89x89 mm |
| Mounting pattern | 16X16; 20X20; 25.5X25.5 |
| stílus | Whoop |
| Weight | 6 g |
| Váz formája | True X |
