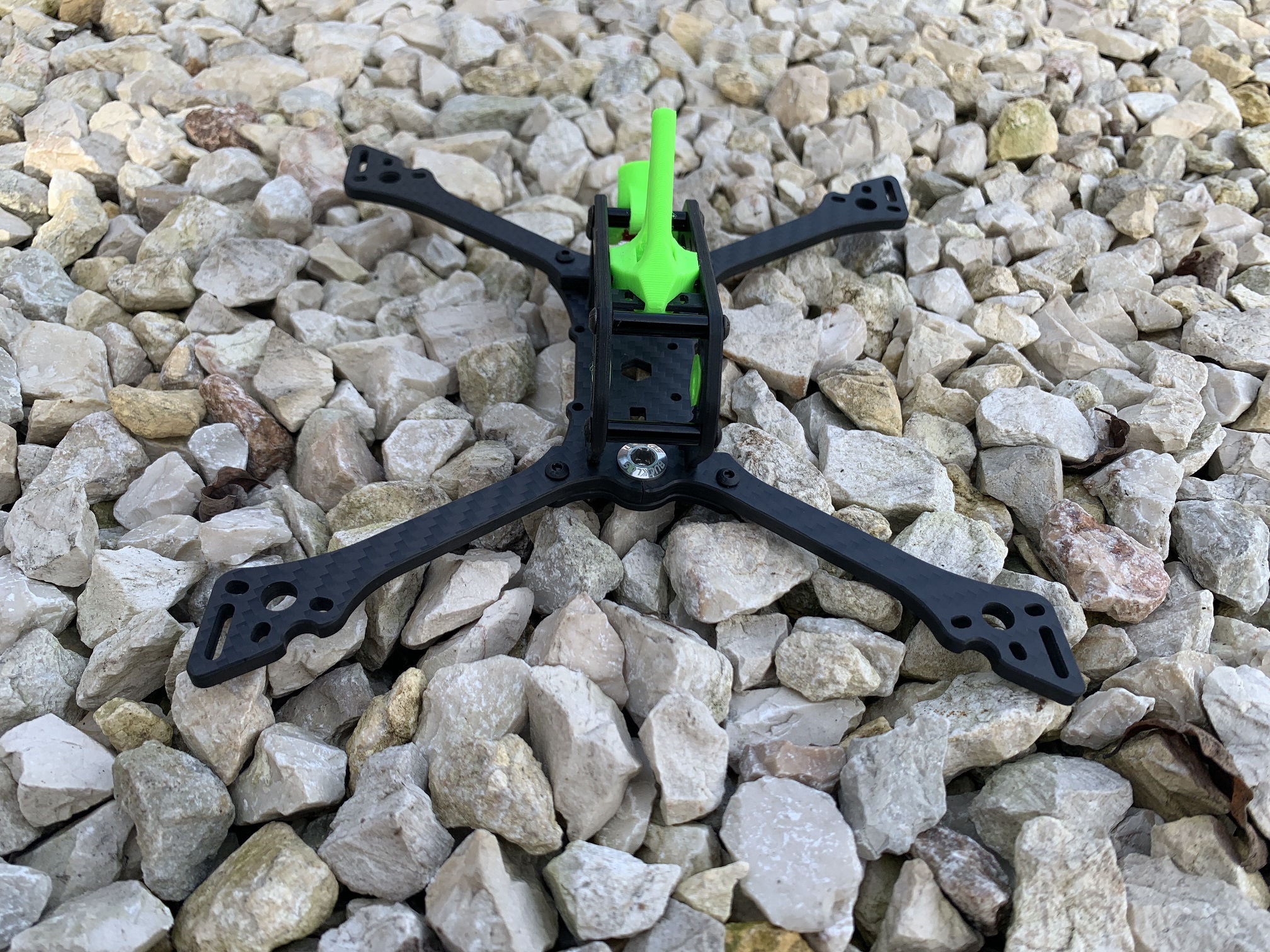

The Reaper frame was designed and manufactured by the CCarbon workshop for racing in all respects.
The frame is produced in-house from 3K carbon sheets with flat-bed CNC milling technology.
One of the great advantages of domestic production is that the necessary parts can be procured within 1-2 days.
The frame is optimized for a 20*20 flight and motor controller, but a 30.5*30.5 mm flight controller can also be installed.
The frame accepts a maximum width of 19 mm from the camera.
The position of the camera can be completely customized thanks to the designed holder.
The design and attachment of the Reaper's arms is optimized for quick replacement.
The frame comes with a fin and a micro Lollipop antenna holder.
Length: 192 mm
Width: 176 mm
Base height: 51 mm (without fins)
Motor-motor distance: 148 / 154 mm
For diagonal axis: 213 mm
Acceptable motor diagonal: 16-19 mm
Height of spacers: 20 mm
Arm thickness: 5 mm
Bottom plate and frame thickness: 3 mm
The assembled weight of the frame without TPU parts: 72 g
The weight of the basic TPU parts for the frames is approximately: 5 g
Recommended propeller size 5.1"
|Dimensions (Length * Width * Height)||192x176 mm|
|Mounting pattern||20x20/30,5x30,5 mm|
|Váz formája||Stretch X|
