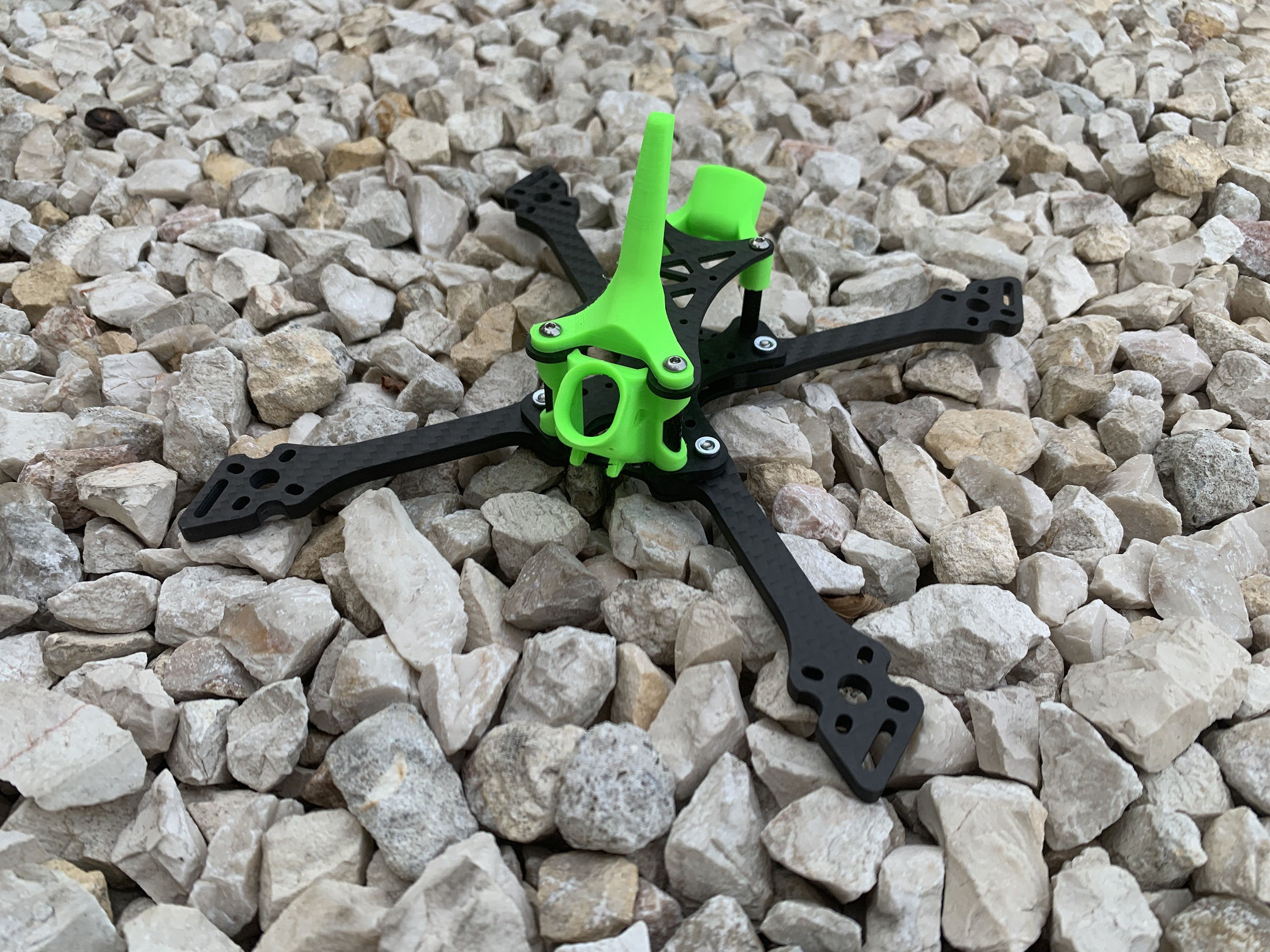

The Edge-X is a completely Hungarian developed frame, designed by the CCarbon workshop for racing in all respects.
Like the design of the frame, it is also manufactured in-house from 3K carbon plates using flat-bed CNC milling technology.
The big advantage of domestic production is that possible parts can be procured within 1-2 days.
The frame is suitable for 30*30 - 20*20 and 16*16 mm flight controllers.
All Edge-X frames are available with a 14*14 camera mount, fin and micro Lollipop antenna mount.
Length: 186 mm
Width: 173 mm
Height base: 37 mm
For diagonal axis: 205 mm
Acceptable motor diagonal: 16-19 mm
Height of spacers: 25 mm
Arm thickness: 5 mm
Top, Mid and Bottom plate thickness: 2-3-2 mm
Assembled weight of the basic frame: 75 g
The weight of the basic TPU parts for the frames is approximately 10 g
Recommended propeller size 5.1"
|Dimensions (Length * Width * Height)||186x173 mm|
|Mounting pattern||20x20/30,5x30,5 mm|
|Váz formája||True X|
