Description

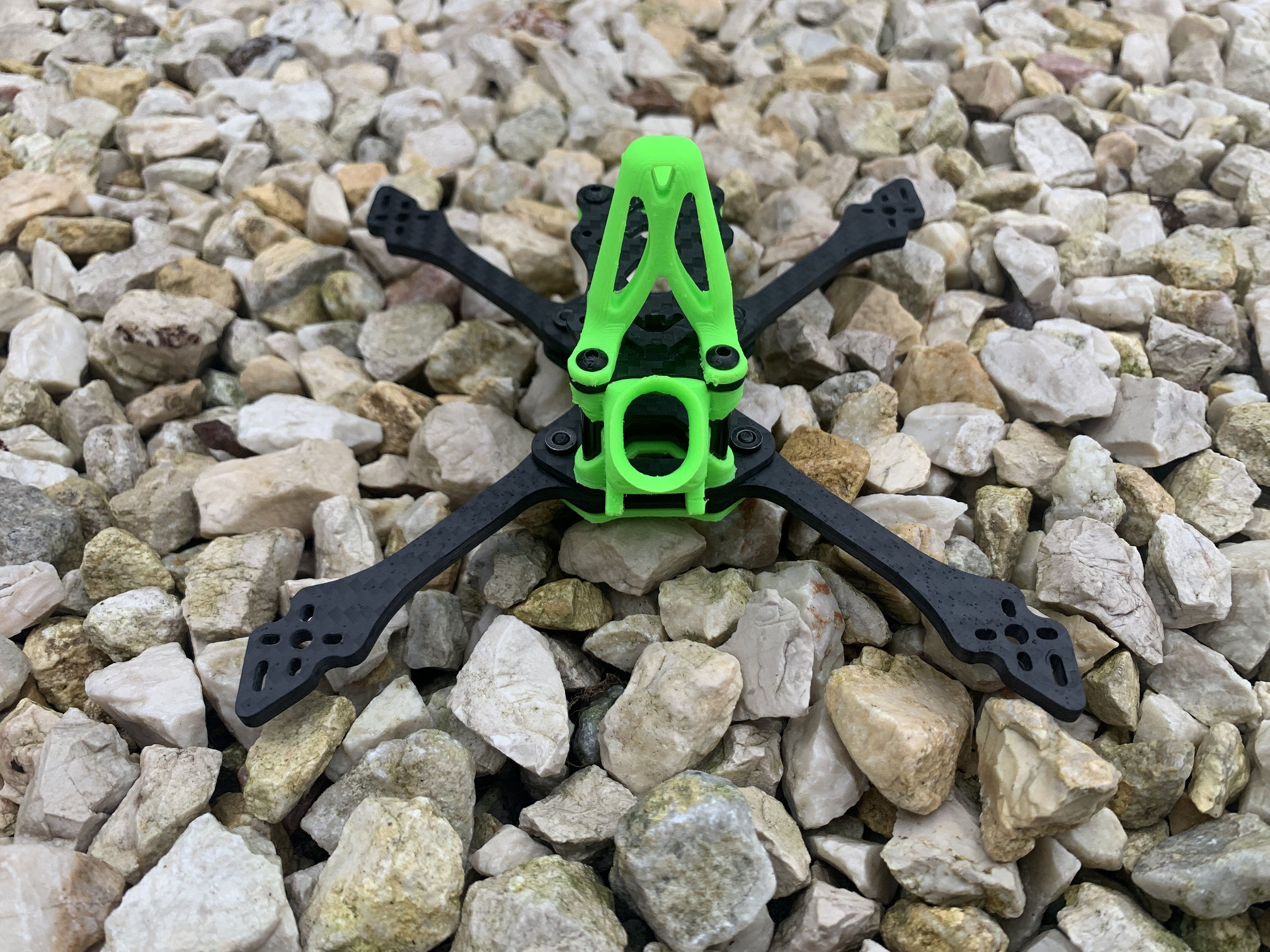

The Blade frame is designed and manufactured by the CCarbon workshop for racing and freestyle flights due to its light weight.
The frame is produced in-house from 3K carbon sheets with flat-bed CNC milling technology.
One of the great advantages of domestic production is that the necessary parts can be procured within 1-2 days.
The frame is designed and built for 20*20 flight and motor control.
The first frame of the CCarbon workshop, which was prepared to receive a Walksnail VTX unit!
Only 14 mm wide can be installed from the camera.
The frame comes with a fin and a micro Lollipop antenna holder.
Assembled Features:
Design: True-X
Length: 150 mm
Width: 140 mm
Base height: 35 mm (without fins)
Motor-motor distance: 121 mm
For diagonal axis: 172 mm
Acceptable motor diagonal: 9-12 mm
Height of spacers: 25 mm
Arm thickness: 4 mm
Bottom, mid and top plate thickness: 2 mm
The assembled weight of the frame without TPU parts: 50 g
The weight of the basic TPU parts for the frames is approximately: 5 g
Recommended propeller size: 4"
Parameters
| Dimensions (Length * Width * Height) | 150x140 mm |
| Mounting pattern | 20x20 mm (micro) |
| stílus | race |
| Weight | 50 g |
| Váz formája | True X |
