Description

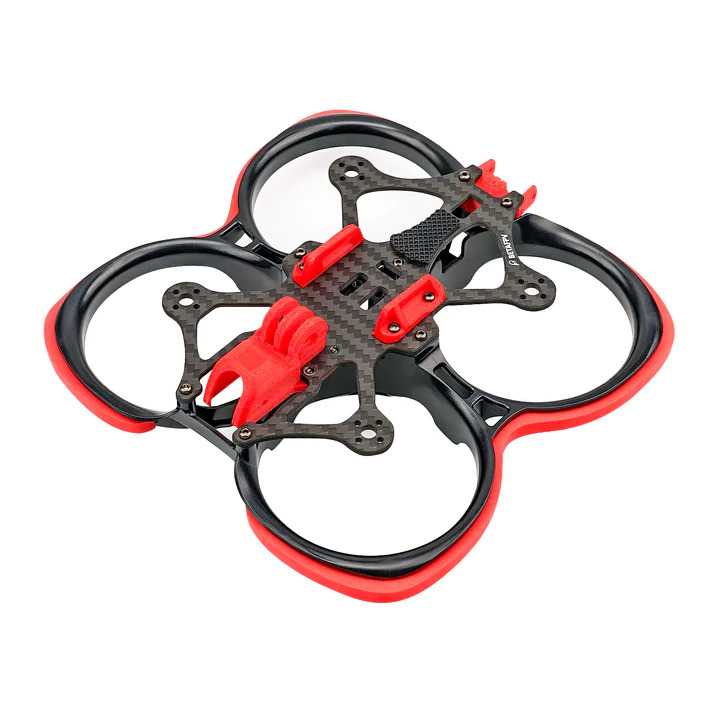

Pavo25 frame is made of high-quality PA12 material with strong and durable injected molding, which grants more stable flight and no fear of damage.
Bullet Point
- With the insert copper nut design on the main screw holes, only 6 screws are enough to assemble the whoop duct and drone, which is convenient to build. The Pavo25 frame sports a reasonable structure assembly design that is optimized to decrease complex components, making the build easy.
- Made of high-quality PA12 material and 2.5mm carbon fiber. With a strong and durable frame kit, the Pavo25 frame optimizes the vibration damping structure for the camera mount, allowing pilots to get an excellent experience.
- An innovative pusher frame with a duct design. It generates more lift for the whole quadcopter, improving the ability of endurance and propulsion.
- Equipped with a CNC Vista Adapter. It effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, reducing the influence of heat on VTX.
CNC Vista Adapter effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, reducing the influence of heat on VTX. It is easy to install and has two mounting angles, which can be mounted by the angle 0° or 45° depending on your needs.
Specification
- Item: Pavo25 Frame Kit
- Wheelbase: 108mm
- Color: Black/Transparent Grey/Yellow/Blue/Purple
- Material: PA12
- Frame Color: Black
- Weight: 68g (frame kit), 31.5g (without carbon fiber)
- Body Size: 153.2*153.7mm (without EVA adhesive foam)
- Top plate thickness: 2.5mm
- Propeller size: 2.5-inch
- FC pattern: 25.5*25.5mm
- FPV cam spacing: 14mm
- Recommend Motor: 1404 4500KV Brushless motor
- Recommend Props: Gemfan D63-3B (Gray)
- Recommend Battery: 4S 750mAh/4S 850mAh
- Recommend FC: F405 AIO 20A Toothpick V4 BMI270
- Recommend Camera: SMO 4K, DJI Action 2
- Recommend VTX: Caddx Nebula Pro Nano Vista Kit/Caddx Baby Ratel2+A03 400mW 5.8
Parameters
Mounting pattern | 25.5x25.5 mm (whoop) |
stílus | Cinewhoop |
Weight | 68 g |
Package included
1 * Pavo25 Frame Kit
1 * SMO 4K Power Cable
1 * Pavo25 Frame Assembling Guide
1 * CNC Vista Adapter
2 * Spare EVA foam tape (Black)
2 * Spare EVA foam tape (Red)
2 * 180mm Battery Strap
1 * Pack of Screws
1 * Pack of 3D Printed Parts
1 * Rear LED Light
4 * 3M Double-Sided Tapes
